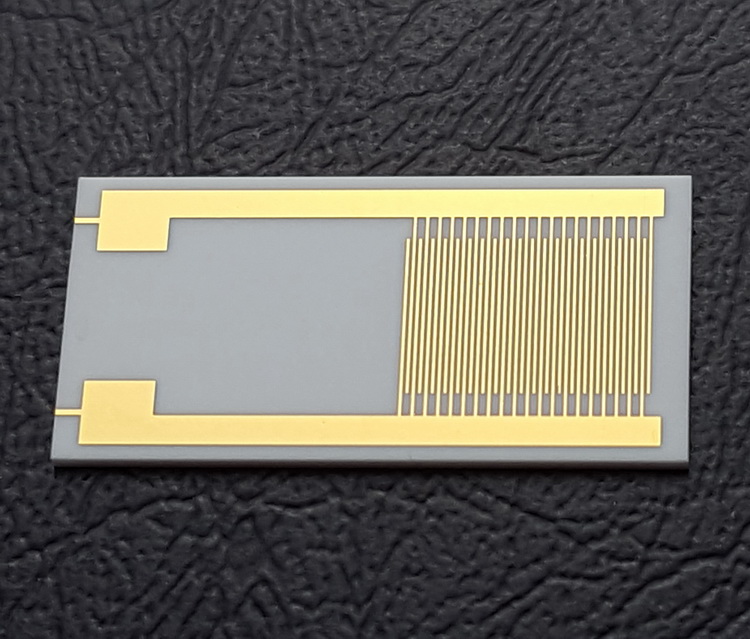

100μm large size ceramic interdigital electrode capacitance array biogas humidity sensor chip 10X20
| 【Numbering】BK2021012501 | 【CAS】cas | ||
| 【Item No.】BK2021012501 | 【specification】 | ||
|
|||

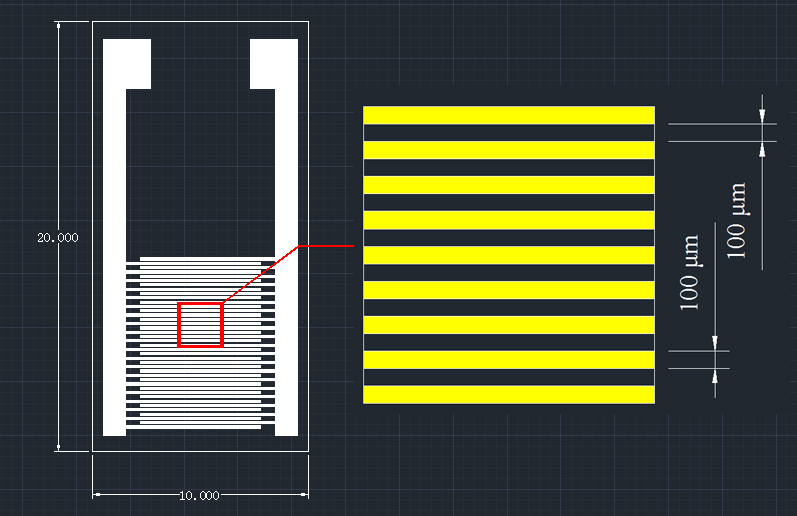

1. Substrate: alumina ceramics; overall dimensions: 20mm*10mm.
2. Line width: 100 um, line spacing: 100 um, finger length: 6.3mm. Interdigital pairs: 20 pairs (40 fingers).
3. Metal layer structure: Ti/Cu/Ni/Au, thickness: 0.1um, 5um, 4um, 1um.
Message
2. Line width: 100 um, line spacing: 100 um, finger length: 6.3mm. Interdigital pairs: 20 pairs (40 fingers).
3. Metal layer structure: Ti/Cu/Ni/Au, thickness: 0.1um, 5um, 4um, 1um.
4. Applicable temperature: -150℃~350℃.
5. Large size and large pad make it easier to operate and observe.

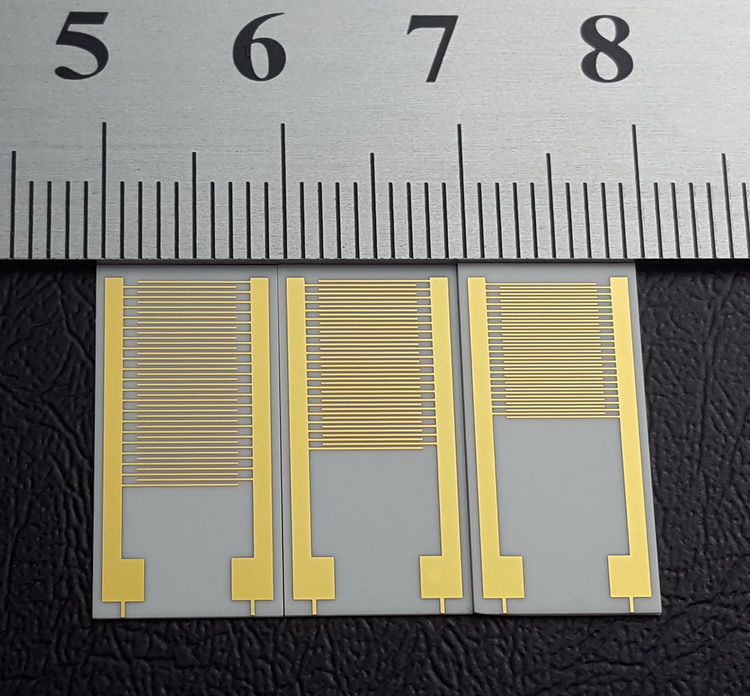

We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, DPC process, MEMS process).
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance |
Message
|
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance.The website pictures are from the Internet. The pictures are for reference only. Please take the real object as the standard. In case of infringement, please contact us to delete them immediately. |
