45 micron flexible interdigital electrode PET capacitance array gas humidity medical sensor chip IDE
| 【Numbering】BK2021012705 | 【CAS】cas | ||
| 【Item No.】BK2021012705 | 【specification】 | ||
|
|||

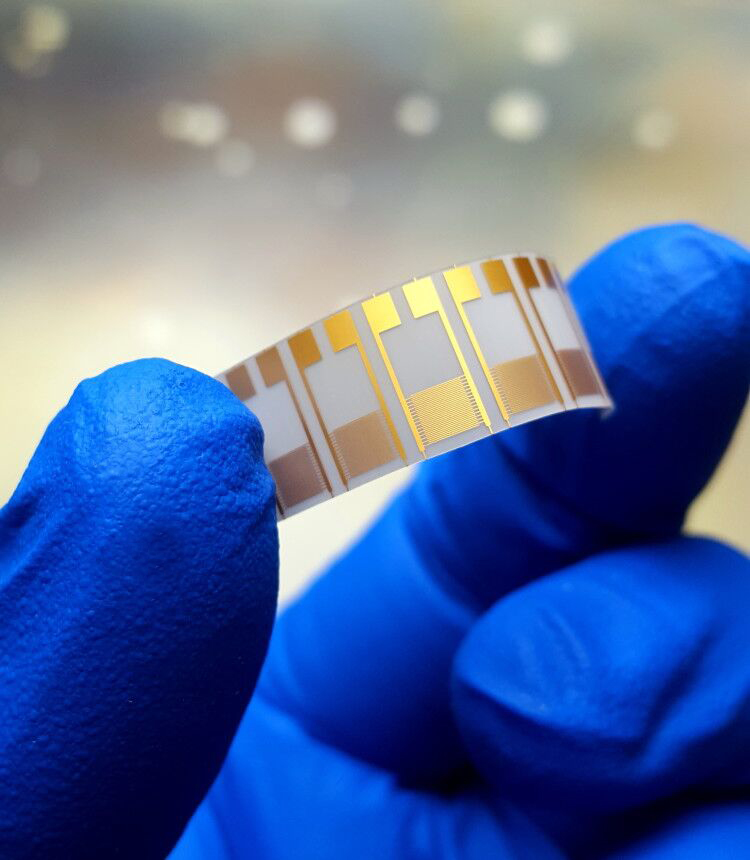

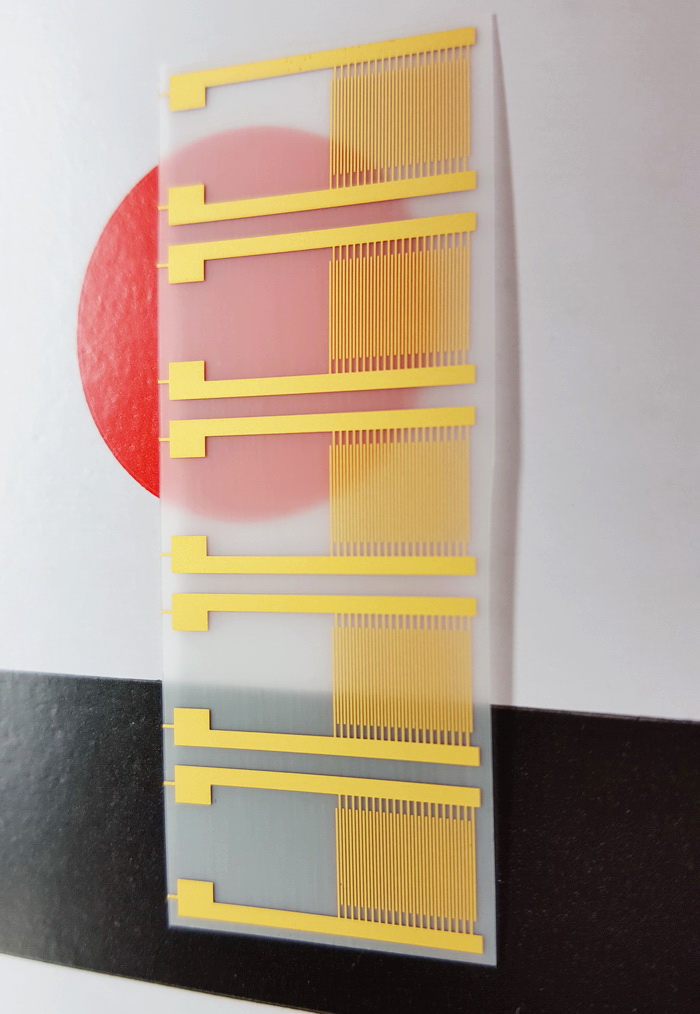

Flexible PET interdigital electrode IDE biogas humidity sensor capacitance array

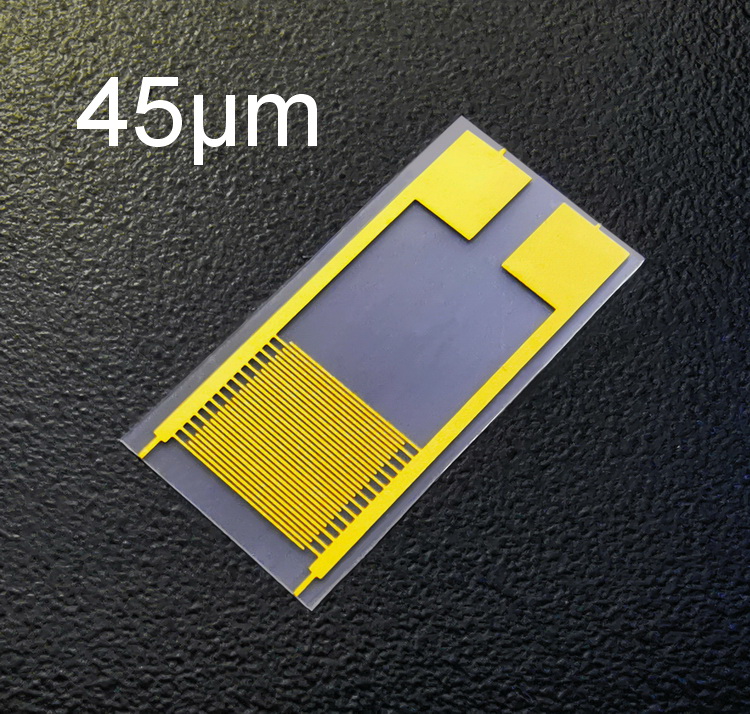

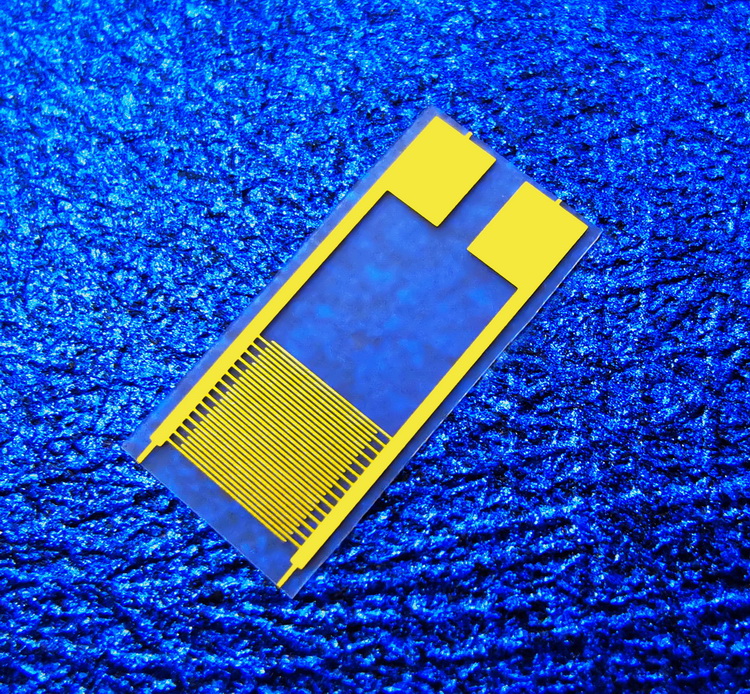

1. Substrate: Polyethylene terephthalate (PET), thickness 70um, external dimension 5mm*10mm. 2. The line width is 45um, the line spacing is 55um, and the finger length is 3.3mm. Interdigital pairs: 15 pairs (30 fingers). 3. The metal layer structure cu/Ni/Au has a thickness of 13um, 1.5um, and 1um respectively.
4. Electrode operating temperature range: -50℃～120℃.
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.
Message
1. Substrate: Polyethylene terephthalate (PET), thickness 70um, external dimension 5mm*10mm. 2. The line width is 45um, the line spacing is 55um, and the finger length is 3.3mm. Interdigital pairs: 15 pairs (30 fingers). 3. The metal layer structure cu/Ni/Au has a thickness of 13um, 1.5um, and 1um respectively.
4. Electrode operating temperature range: -50℃～120℃.
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, DPC process, MEMS process).
